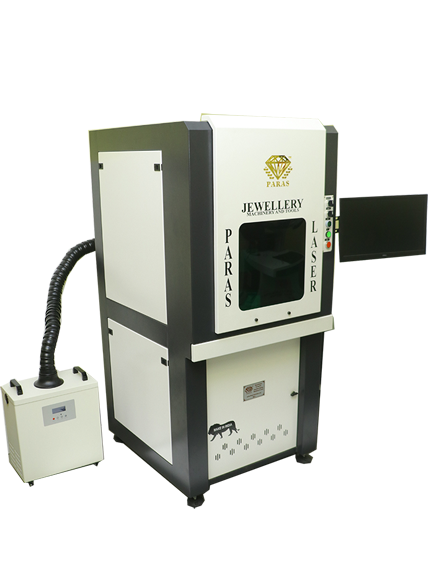

Fiber Lux Laser Marker
Unquestionably, the ideal laser for cutting and marking, thanks to the use of ytterbium-doped fiber optics with low environmental impact and low maintenance. It can be used to mark objects of any metal, engrave photographs, logos, trademarks. Equipped with a motor-driven Z-axis with movement resolution of 0.01 mm, and an innovative, user-friendly focus system with overlapping pointers, it can also be equipped with an internal videocam inside the laser chamber, for optimization of processing and possible remote assistance. Every machine can be equipped with a range of options such as: high precision rotating axis system, electro-pneumatic plate driver (feeder) with ELETTROLASER software, exhaust fan, clamp for blocking pieces, movable in the X and Y axes, and a system of pneumatic hatch opening.
- Pulsed fiber lasers
- Wide Working Space
- Double red pointer for positioning objects
- R-axis for marking rings and bracelets
- Z-axis with stepped motor controlled by software
- Z-axis with stepped motor controlled by software
- Multiple cutting process tool
| FIBERLUX 20 | FIBERLUX 30 | FIBERLUX 50 | FIBERLUX 70 | FIBERLUX 100 | |
|---|---|---|---|---|---|
| OUTPUT POWER | 20 W | 30 W | 50 W | 70 W | 100 W |
| WAVE LENGHT | 1064 nm | ||||
| ACCURACY | 12 uRad | ||||
| POWER SUPPLY | 230V 50/60Hz | ||||
| ABSORBED POWER[W] | 300 W | 300 W | 300 W | 450 W | 450 W |
| MACHINE DIMENSIONS (LXDXH) | 450x750x670 mm | ||||
| WORKING SPACE DIMENSION (LXDXH) | 250x250x350 mm | ||||
| WEIGHT | 55 kg | 55 kg | 55 kg | 60 kg | 60 kg |
| FOCAL 100: MARKING AREA / SPOT | 60×60 mm / 11 um | ||||
| FFOCAL 160: MARKING AREA / SPOT | 100×100 mm / 26 um | ||||
| FFOCAL 210: MARKING AREA / SPOT | 160×160 mm / 34 um | ||||
| SPEED OF GALVO HEAD [M/S] | up to 7000 m/s | ||||
| MAX PULSE ENERGY [MJ] | up to 1,5 mJ | ||||
| MAX FREQUENCY [KHZ] | 1000 KHz | ||||
| COOLING SYSTEM | air cooled | ||||
| PULSE DURATION | 10 at 200ms | ||||
| LASER CLASS | IV | ||||
Fiber Lux 3d Laser Marker
The evolution of the FiberLUX series permits marking and cutting on uneven surfaces, with the ElettroLaser FiberLUX 3D, equipped with a dynamic automatic focus system. The software can interpret the mathematics of three-dimensional drawings previously developed the most common CAD on the market and apply machining on the objects to be realized. It is also equipped with a solid-state laser in ytterbium-doped fiber and is a machine with low environmental impact and low maintenance. It can be used to mark any metal object, engrave photos, logos, trademarks and texts even with surface unevenness approximately 35 mm.
- Pulsed fiber laser
- 3D software for image processing
- R-axis for marking rings and bracelets
- 3D focus-shift scan-head
- Adjustable focus height 35 mm
| FIBERLUX 3D 20 | FIBERLUX 3D 30 | FIBERLUX 3D 50 | FIBERLUX 3D 70 | FIBERLUX 3D 100 | |
|---|---|---|---|---|---|
| OUTPUT POWER | 20 W | 30 W | 50 W | 70 W | 100 W |
| WAVE LENGHT | 1064 nm | ||||
| ACCURACY | 12 uRad | ||||
| POWER SUPPLY | 230V 50/60Hz | ||||
| ABSORBED POWER | 500 W | 500 W | 500 W | 600 W | 650 W |
| MACHINE DIMENSIONS (LXDXH) | 910x460x610 mm | ||||
| WORKING SPACE DIMENSION (LXDXH) | 230x380x350 mm | ||||
| WEIGHT | 90 kg | 90 kg | 90 kg | 92 kg | 92 kg |
| FOCAL 100: MARKING AREA / SPOT | 60×60 mm / 11 um | ||||
| FFOCAL 160: MARKING AREA / SPOT | 110×110 mm / 26 um | ||||
| SPEED OF GALVO HEAD | 6000 m/s | ||||
| MAX PULSE ENERGY | up to 1,5 mJ | ||||
| MAX FREQUENCY | 1000 KHz | ||||
| COOLING SYSTEM | air cooled | ||||
| PULSE DURATION | 10 to 200 ms | ||||
| LASER CLASS | IV | ||||
| FOCUS RANGE IN Z DIRECTION WITH 100MM FOCAL LENSE | 10 mm | ||||
| FOCUS RANGE IN Z DIRECTION WITH 160MM FOCAL LENSE | 35 mm | ||||
- 3 Beakers
- 3 Thermostats
- 1 Voltmeter
- 3 Plugs for heater
- 1 Plug pins for cathode & anode terminals
- 4 Heaters
- 3 (ST 316) Anodes

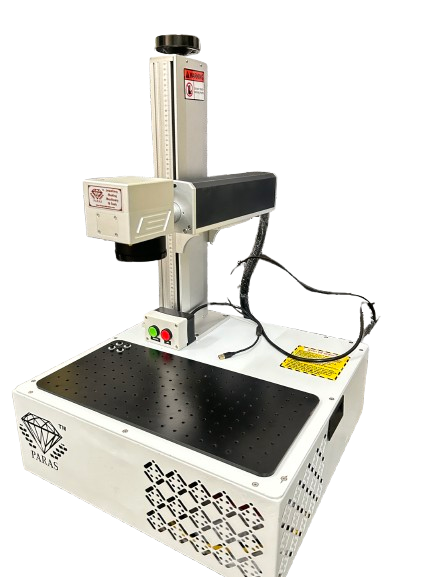

Fiber Lux 3d Nano Laser Marker
The ‘mini’ model by ElettroLaser was developed by incorporating the research and innovations of the FiberLUX series but with a view to offering a high quality laser at an accessible price. It is also equipped with a laser source in ytterbium-doped fiber optics and is a machine with low environmental impact and low maintenance. The machine is small, with a fully accessible working chamber thanks to the absence of hatches, and an output marking power of 10W, 20W and 30W. FiberLUX Nano is supplied complete with software capable of importing files from the most well-known computer-design programs currently in existence, and every machine can also be optioned with the high precision rotating axis and clamp for blocking pieces, movable in the X and Y axes.
- Pulsed fiber laser
- 3D software for image processing
- R-axis for marking rings and bracelets
- 3D focus-shift scan-head
- Adjustable focus height 35 mm
| FIBERLUX NANO 10 | FIBERLUX NANO 20 | FIBERLUX NANO 30 | |||
|---|---|---|---|---|---|
| OUTPUT POWER | 10 W | 20 W | 30 W | 70 W | 100 W |
| WAVE LENGHT | 1064 nm | ||||
| ACCURACY | 12 uRad | ||||
| POWER SUPPLY | 230V 50/60Hz | ||||
| ABSORBED POWER | 500 W | 500 W | 500 W | 600 W | 650 W |
| MACHINE DIMENSIONS (LXDXH) | 910x460x610 mm | ||||
| WORKING SPACE DIMENSION (LXDXH) | 230x380x350 mm | ||||
| WEIGHT | 90 kg | 90 kg | 90 kg | 92 kg | 92 kg |
| FOCAL 100: MARKING AREA / SPOT | 60×60 mm / 11 um | ||||
| FFOCAL 160: MARKING AREA / SPOT | 110×110 mm / 26 um | ||||
| SPEED OF GALVO HEAD | 6000 m/s | ||||
| MAX PULSE ENERGY | up to 1,5 mJ | ||||
| MAX FREQUENCY | 1000 KHz | ||||
| COOLING SYSTEM | air cooled | ||||
| PULSE DURATION | 10 to 200 ms | ||||
| LASER CLASS | IV | ||||
| FOCUS RANGE IN Z DIRECTION WITH 100MM FOCAL LENSE | 10 mm | ||||
| FOCUS RANGE IN Z DIRECTION WITH 160MM FOCAL LENSE | 35 mm | ||||
