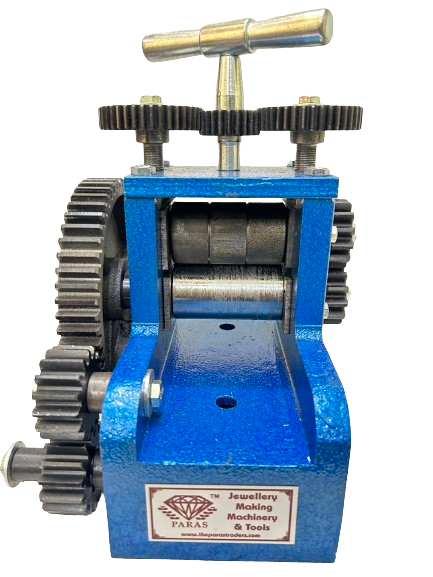

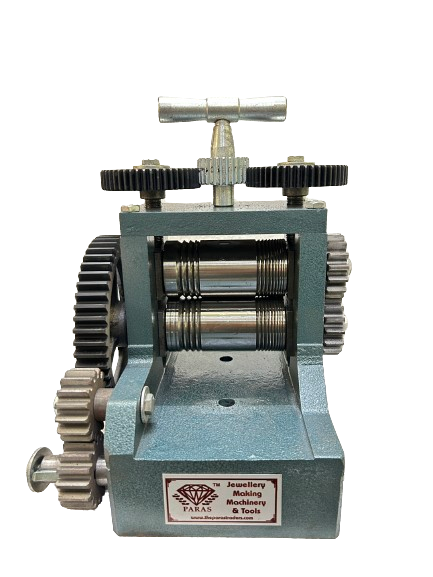

| Product Name: | Mini Wire Roll Press Without Cover Regular 4″ x 2″ (Tar Pata) |
|---|---|
| No. of Rolls: | 1Pair |
| Roller Width X Diameter: | 101 mm x 51 mm |
| Roller Material: | EN – 31 |
| Groove Maximum/Minimum: | 08 to 22 Guage |
| No. of Half Round Groove: | 2 (1.5 mm & 2.5 mm) |
| Maximum Sheet Width Can be Rolled: | 38 mm |
| Maximum Apertures of Rolls: | 3 mm |
| Machine Dimension Without Operating Wheel in Inch: | 10″ x 10″ x 10″ |
| Approx Width in Kg: | 19.5 KG. |
| Available Sizes of Roller: | (3.5″ x 2″) & (4″ x 2″) |

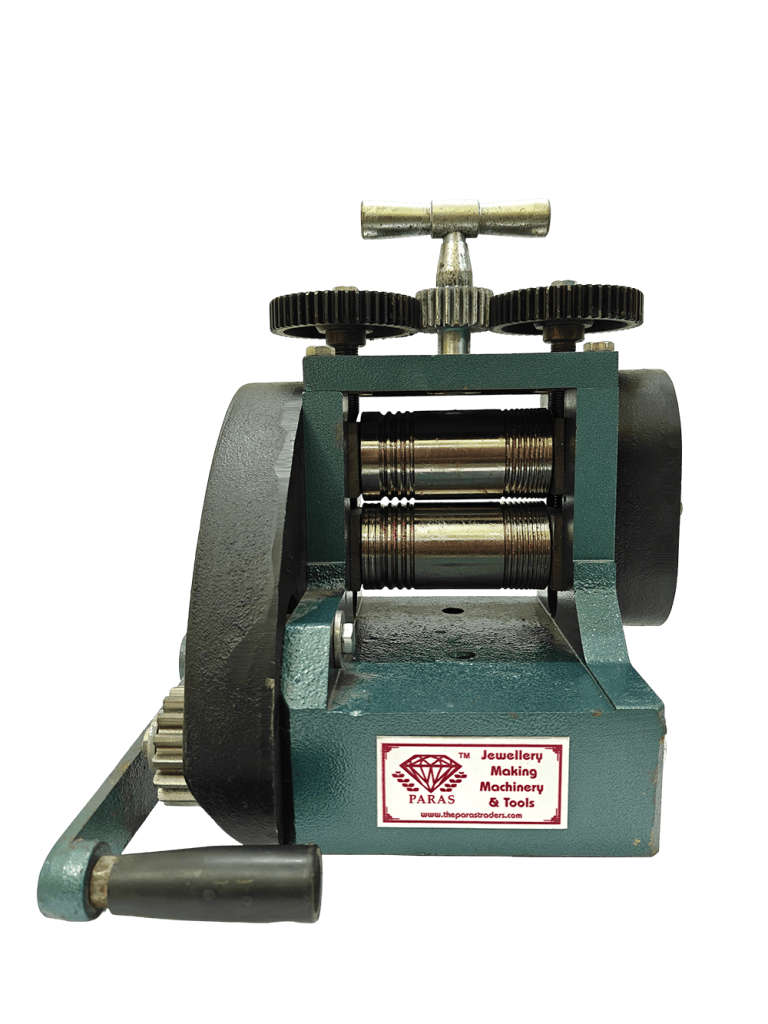

| Product Name: | Mini Roll Press With Cover Regular 4″ x 2″ (Tar Pata) |
|---|---|
| No. of Rolls: | 1 Pair |
| Roller Width X Diameter: | 101 mm x 51 mm |
| Roller Material: | EN – 31 |
| Groove Maximum/Minimum: | 08 to 22 Guage |
| No. of Half Round Groove: | 2 (1.5 mm & 2.5 mm) |
| Maximum Sheet Width Can be Rolled: | 38 mm |
| Maximum Apertures of Rolls: | 3 mm |
| Machine Dimension Without Operating Wheel in Inch: | 10″ x 10″ x 10″ |
| Approx Width in Kg: | 19.5 KG. |
| Cover Attached: | Yes |
| Available Sizes of Roller: | (3.5″ x 2″) & (4″ x 2″) |

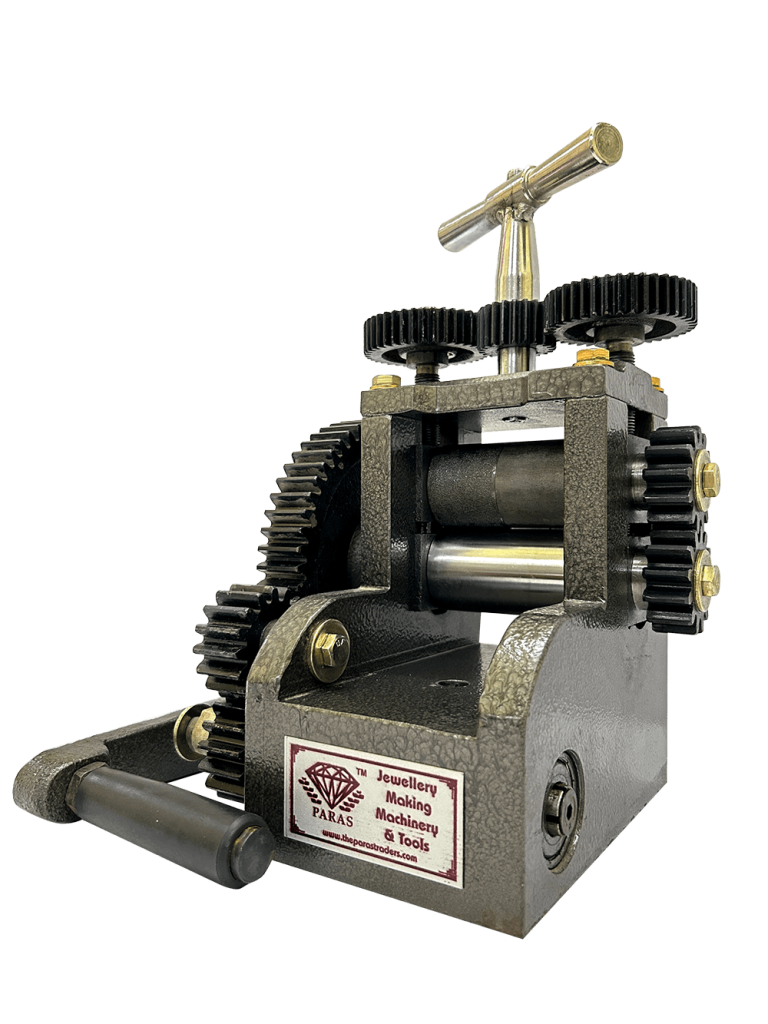

| Product Name: | WIRE AND SHEET DESIGNING MODEL |
|---|---|
| No. of Rolls: | 1 Pair |
| Roller Width X Diameter: | 88 mm x 51 mm |
| Roller Material: | WPS |
| Groove Maximum/Minimum: | Only Plain |
| Roller R.P.M: | 24 RPM |
| Supporting Plate & Dial Gauge: | Plate Attached – Dial Gauge Optional |
| Power Supply: | 1 H.P – 230 Valt |
| Machine Dimension in Inch: | 10″ x 10″ x 10″ |
| Approx Width in Kg: | 17.5 KG. |
| Available Sizes of Roller: | 3″ |

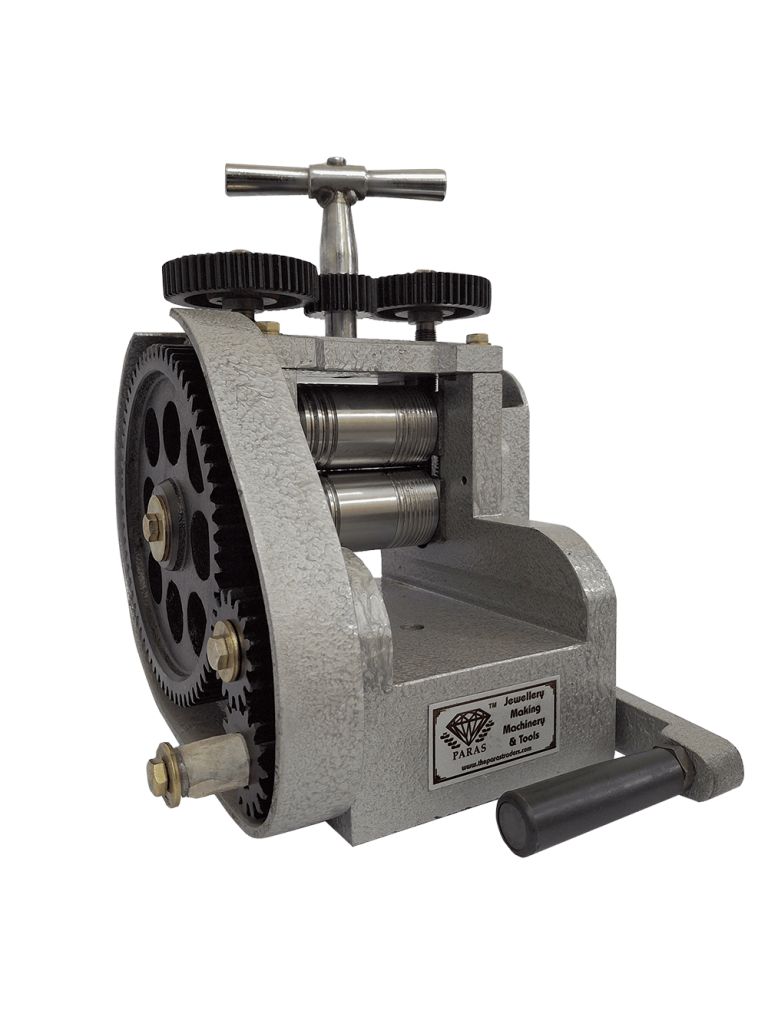

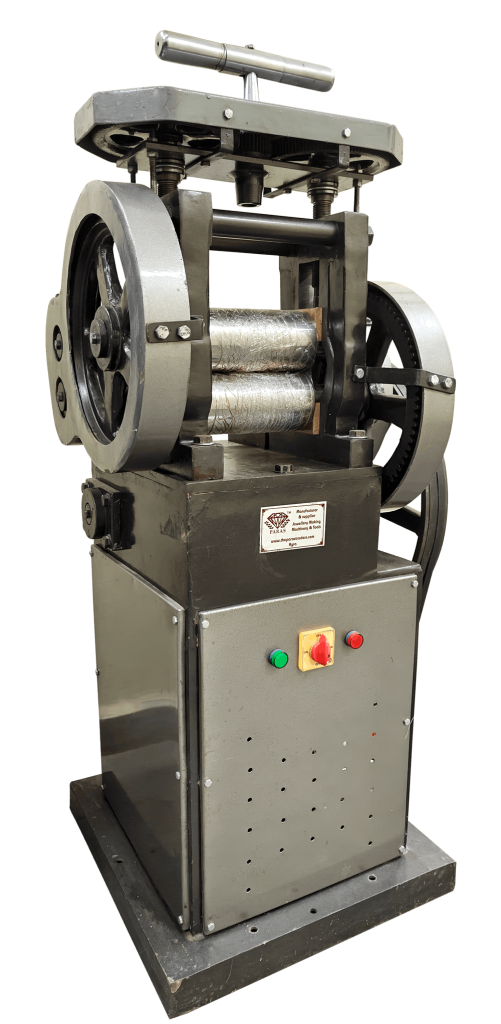

| Product Name: | WIRE AND SHEET HEAVY DUTY |
|---|---|
| Size of Rolls: | 4″ x 2″ |

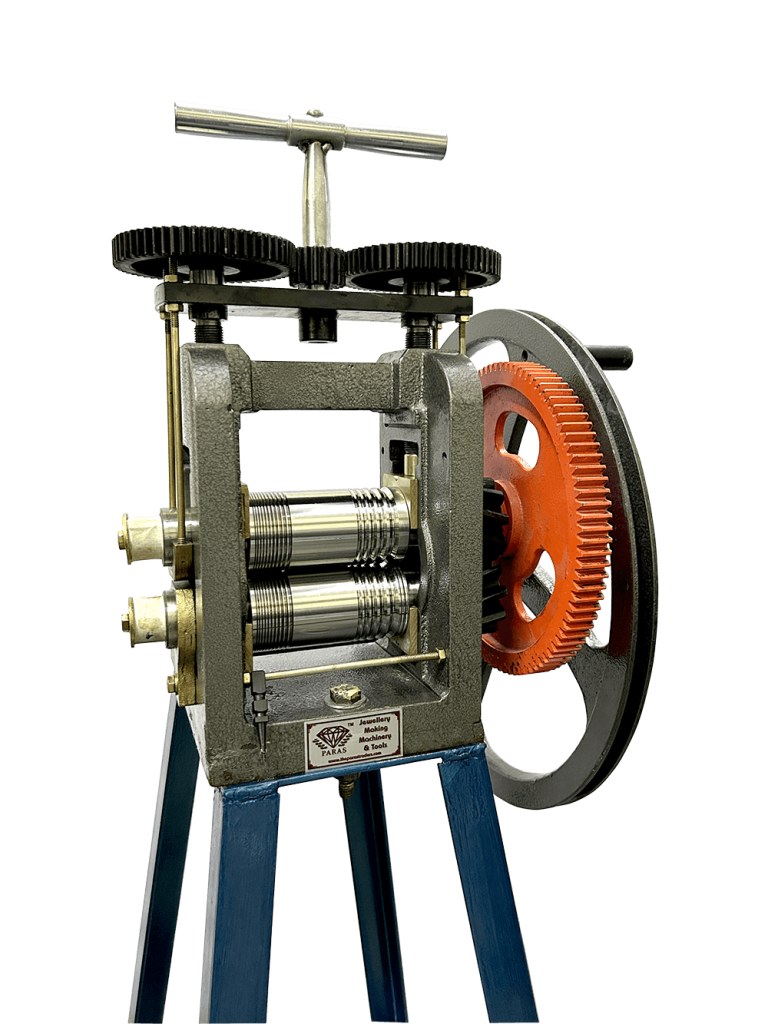

| Product Name: | Wire & Sheet Rolling Only Head 5″ x 2.5″ (Without Cover) Tar Pata |
|---|---|
| No. of Rolls: | 1 Pair |
| Roller Width X Diameter: | 127 mm x 63 mm |
| Roller Material: | EN – 31 |
| Groove Maximum/Minimum: | 07 to 22 Guage |
| No. of Half Round Groove: | 2(1.5 mm & 2.5 mm) |
| Maximum Sheet Width Can be Rolled: | 46 mm |
| Maximum Apertures of Rolls: | 5 mm |
| Machine Dimension Without Operating Wheel in Inch: | 16″ x 16″ x 16″ |
| Approx Width in Kg: | 60 KG. |
| Available Sizes of Roller: | (4″ x 2.25″) & (5″ x 2.5″) |
| Product Name: | Wire & Sheet Rolling Single Head 12″ x 6″ INDUSTRIAL |
|---|---|
| No. of Rolls: | 1 Pair |
| Roller Width X Diameter: | 300 mm x 150 mm |
| Roller Material: | WPS |
| Groove Maximum/Minimum: | Only Plain |
| Roller R.P.M: | 18 RPM |
| Supporting Plate & Dial Gauge: | Yes |
| Emergency Break & Auto Oli Lubricating System: | Optional |
| Power Supply: | 7.50 H.P – 440 Valt / 3 Phase |
| Machine Dimension in Inch: | 48″ x 24″ x 66″ |
| Approx Width in Kg: | 1400 KG. |
| Available Sizes of Roller: | (6″ x 3″) & (8″ x 4″) &(12″ x 6″) |
| Product Name: | Wire & Sheet Rolling Single Dual Operated 6″ x 3″ |
|---|---|
| No. of Rolls: | 1 Pair |
| Roller Width X Diameter: | 152 mm x 76.2 mm |
| Roller Material: | EN – 31 |
| Groove Maximum/Minimum: | 03 to 22 Gauge |
| No. of Half Round Groove: | 2 |
| Roller R.P.M: | 35 RPM |
| Facility For Extra Side Roller at One End: | YES |
| Supporting Plate & Dial Gauge: | Optional |
| Power Supply: | 1.5 H.P – 230 Valt (With Hand Operated) |
| Machine Dimension in Inch: | 26″ x 20″ x 55″ |
| Approx Width in Kg: | 190 KG. |
| Available Sizes of Roller: | (5″ x 2.5″) & (6″ x 3″) |
| Product Name: | Mini Sheet Rolling Single 3″ (Gear Box) For Hallmarking Purpose |
|---|---|
| No. of Rolls: | 1 Pair |
| Roller Width X Diameter: | 76 mm x 42 mm |
| Roller Material: | WPS |
| Groove Maximum/Minimum: | Only Plain |
| Roller R.P.M: | 24 RPM |
| Supporting Plate & Dial Gauge: | Plate Attached – Dial Gauge Optional |
| Power Supply: | 1 H.P – 230 Valt |
| Machine Dimension in Inch: | 18″ x 18″ x 35″ |
| Approx Width in Kg: | 100 KG. |
| Product Name: | WIRE AND SHEET DOUBLE GEAR ROLLING MACHINE AMRITSAR MODEL |
|---|---|
| Available Sizes: | 5″, 6″, 7″, 8″ (based on Customer need) |

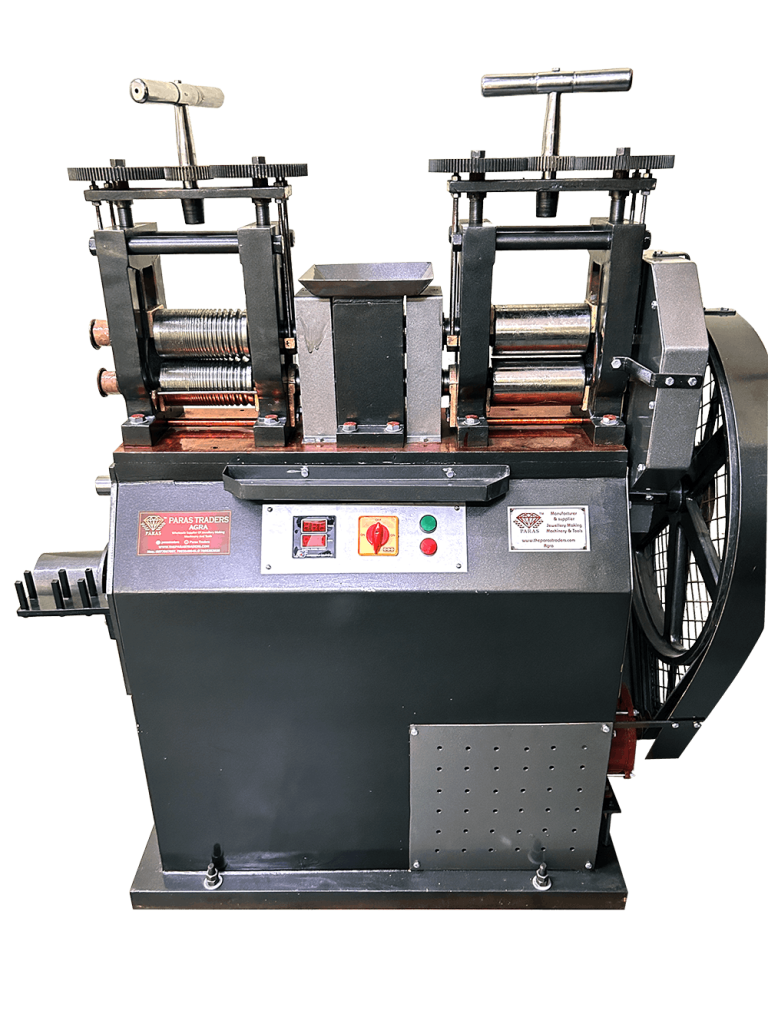

| Product Name: | WIRE AND SHEET SEMI-GEAR BOX ROLLING MACHINE AMRITSAR MODEL |
|---|---|
| Available Sizes: | 5″, 6″, 7″, 8″ (based on Customer need) |

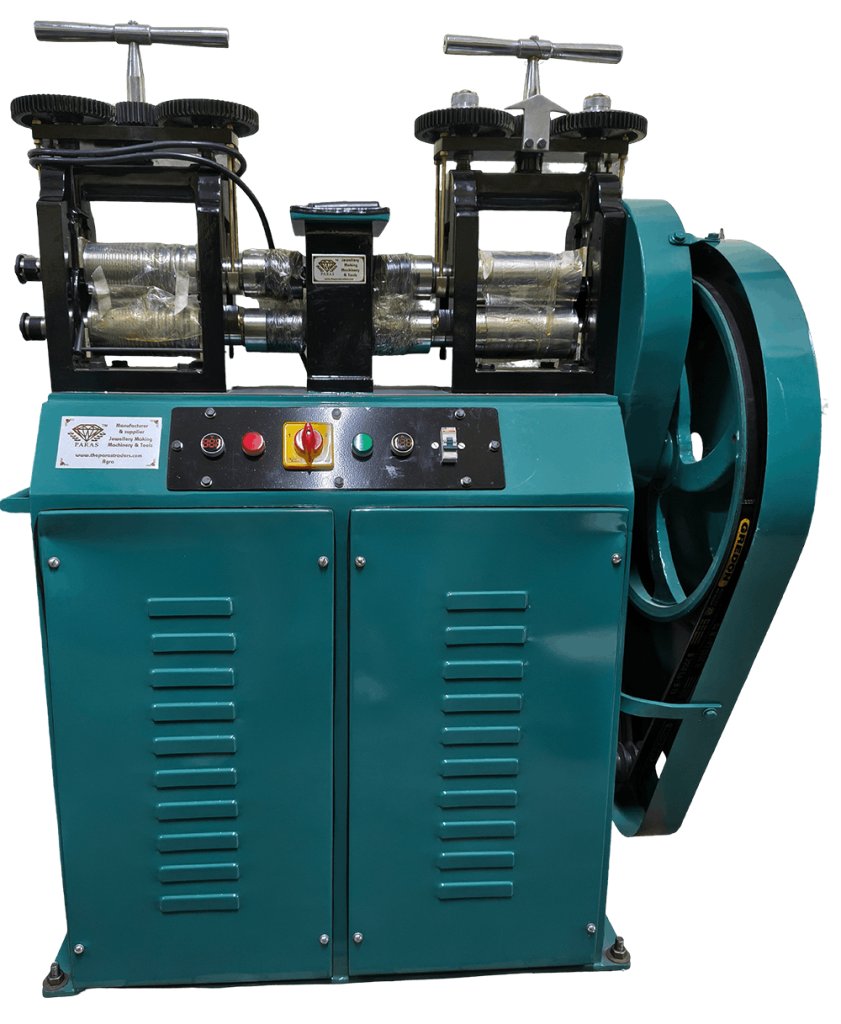

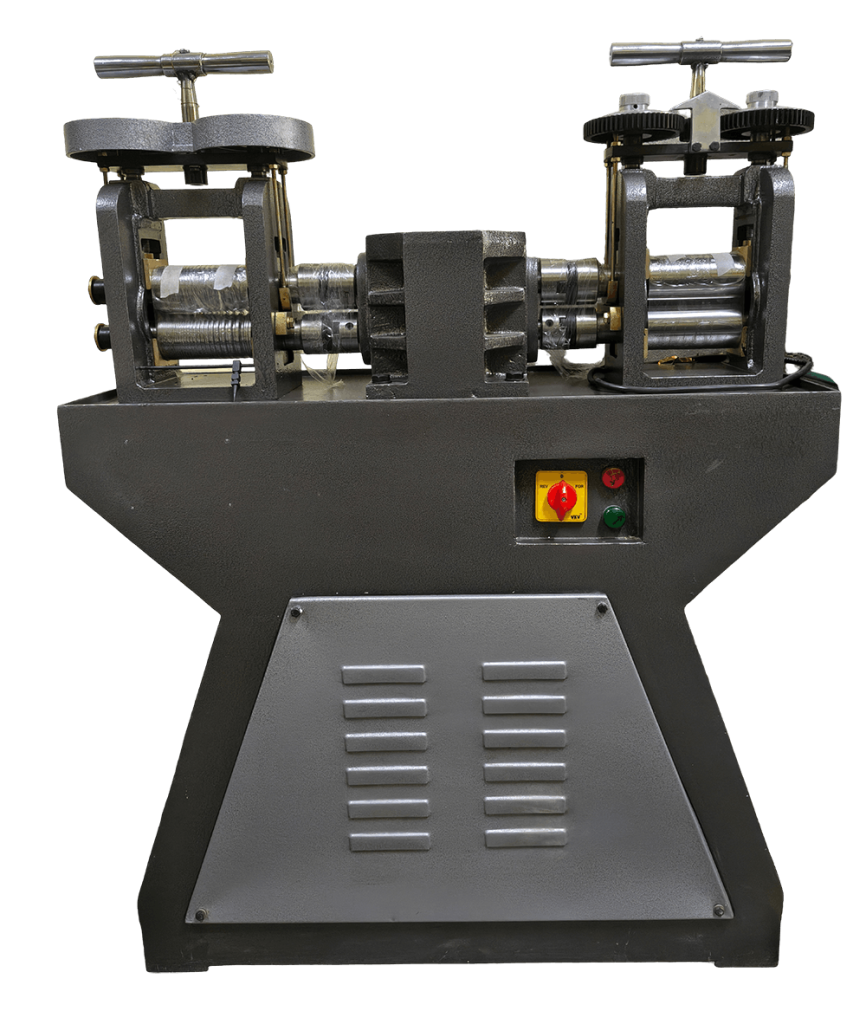

| Product Name: | Wire & Sheet Rolling Double Head 8″ x 5″ |
|---|---|
| No. of Rolls: | 2 Pair |
| Roller Width X Diameter: | 203 mm x 127 mm |
| Roller Material: | WPS |
| Groove Maximum/Minimum: | 1.5 to 22 Guage |
| No. of Half Round Groove: | 2 |
| Roller R.P.M: | 10 RPM |
| Supporting Plate And Dial Gauge: | Optional |
| Emergency Brake & Auto Oli: | Attached |
| Power Supply: | 5 HP 3 Phase |
| Machine Dimension in Inch: | 60″ x 24″ x 63″ |
| Approx Width in Kg: | 900 KG. |
| Available Sizes of Roller: | (5″ x 2.5″)& (4″ x 2″)& (6″ x 3″)& (8″ x 4″) |
| Product Name: | Wire & Sheet Rolling Dual Operating |
|---|---|
| No. of Rolls: | 2 Pair |
| Roller Width X Diameter: | 127 mm x 63 mm |
| Roller Material: | WPS |
| Groove Maximum/Minimum: | 0.7 to 22 Guage |
| No. of Half Round Groove: | 2 |
| Roller R.P.M: | 35 RPM |
| Facility For Extra Side Roller at One End: | Yes |
| Supporting Plate & Dial Gauge: | Optional |
| Power Supply: | 1.5 H.P – 230 Valt |
| Machine Dimension in Inch: | 36″ x 20″ x 52″ |
| Approx Width in Kg: | 240 KG. |
| Available Sizes of Roller: | 5″ x 2.5″ |
| Product Name: | WIRE AND SHEET TRIPLIGATE ROLLING MACHINE AMRITSAR MODEL |
|---|---|
| Available Sizes: | 5″, 6″, 7″, 8″ (based on Customer need) |
